Power Failure Alarm & Mains Return Hooter

Know the moment your power fails. And the moment it returns.

Two essential mains monitoring devices — panel mount, 90×90mm cutout

Power failure costs Indian industry in two ways: the obvious cost of lost production during the outage, and the hidden cost of running a diesel generator long after mains power has returned. Both have solutions.

The diesel cost no one talks about

The average Indian factory wastes ₹800–2,000 of diesel per event running the DG set after mains has resumed — simply because no one in the plant knows mains is back. The Mains Return Hooter pays for itself within the first month at sites with frequent outages.

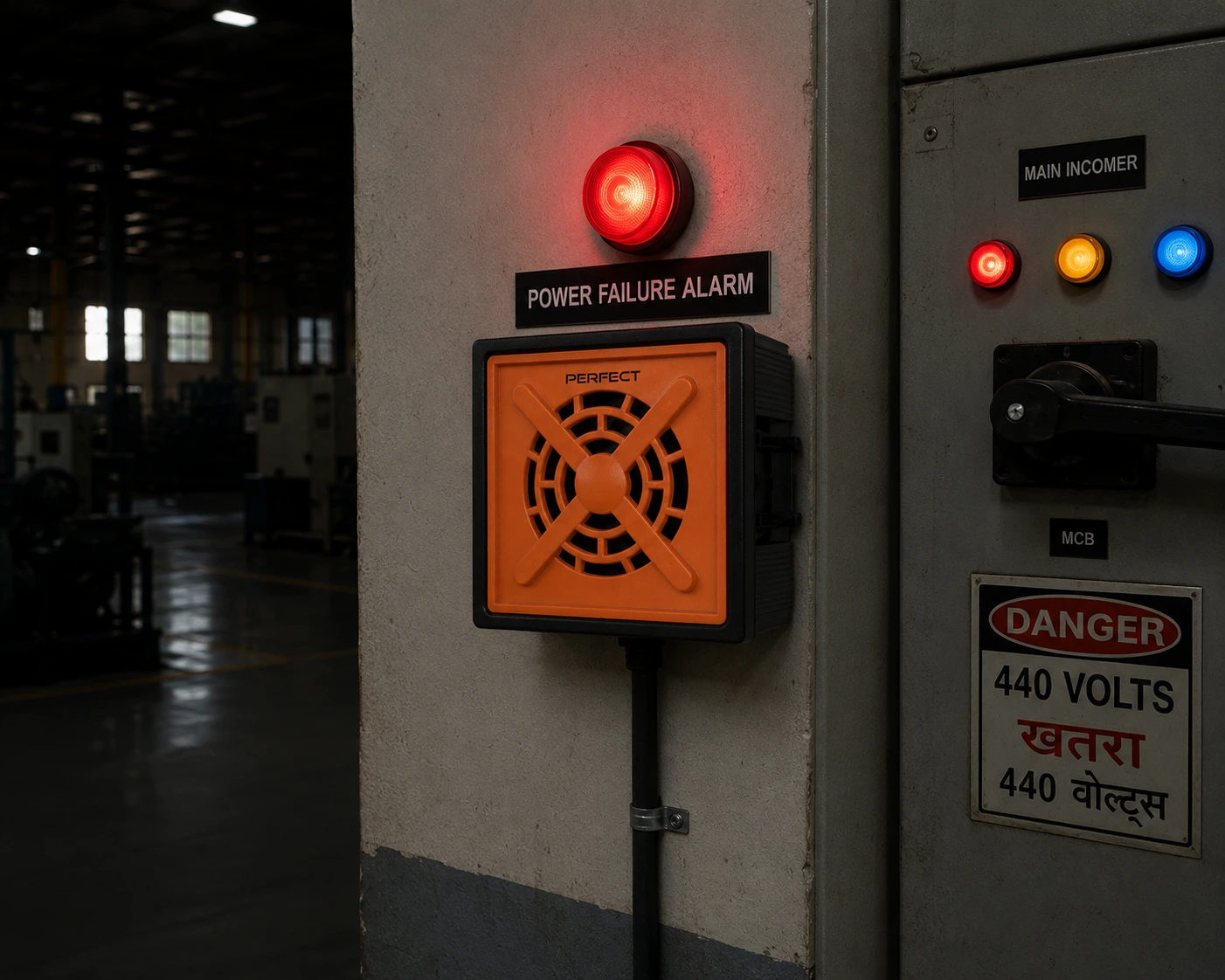

Product 1 — Power Failure Alarm

Sounds when AC mains supply cuts off

Wired to your mains supply and powered from your UPS or battery backup — the power failure alarm detects mains loss and immediately sounds a triple-tone alert. The acknowledgement button silences the hooter while monitoring continues — so the alarm sounds again if power fails a second time.

Parameter	Specification
Function	Sounds when AC mains supply fails
Panel cutout	90mm × 90mm
Supply (backup)	12V DC / 24V DC / 48V DC — from UPS or battery
Mains sensing input	110V AC or 220V AC
Tone	Triple tone
Output	50 metres audible range
Acknowledgement	Push button — silences hooter, monitoring continues
Relay output	Yes — for external lamp or panel indication

↕ Scroll down to see full specification table on desktop

Product 2 — Mains Return Hooter (Generator Bell)

Sounds when grid power resumes while DG is running

This device monitors both mains and DG supply simultaneously. When mains supply returns while the DG is running, it sounds a single-tone alert — telling the operator to switch back to mains and shut down the DG.

Parameter	Specification
Function	Sounds when mains resumes while DG is running
Panel cutout	90mm × 90mm
Mains input	220V AC
DG input	220V AC
Tone	Single tone — continuous until acknowledged
Output	50 metres audible range
Diesel saving	Prevents unnecessary DG runtime after mains resumes

↕ Scroll down to see full specification table on desktop

Buyers ask us

What powers the alarm during the power cut?

The power failure alarm is powered from your UPS, inverter, or external battery — not from mains. Connect the backup supply terminals to your UPS output. The unit draws approximately 0.35A at 12V DC — a small UPS will run it for hours.

Can both products be installed together?

Yes — and most sites install both. The power failure alarm sounds when mains goes off (so staff start the DG quickly). The mains return hooter sounds when mains comes back (so staff shut down the DG promptly). Together they minimise both outage impact and unnecessary DG running time.

Is the 90×90mm cutout the same as standard panel meters?

Yes — 90×90mm is a standard DIN cutout size used for panel meters, timers, and indicators. No special drilling required if you have an existing 90×90mm cutout available.

Can I connect a remote lamp or panel indicator?

Yes. The relay output on the power failure alarm can drive an external indicator lamp or signal the panel's annunciator system. Relay rated at 1A 230V AC.

Does the mains return hooter work if mains and DG come on simultaneously after a planned shutdown?

Yes — any time both mains and DG inputs are simultaneously energised, the hooter sounds. This covers planned restarts as well as unexpected mains return during DG operation.

Two essential mains monitoring devices — panel mount, 90×90mm cutout

Sounds when AC mains supply cuts off

Sounds when grid power resumes while DG is running
