LED Warning Light — RLB Series Industrial Beacon, LTE-1101 Equivalent

Machine status at a glance. Visible from 50 metres.

Industrial LED revolving warning light — LTE-1101, LTD-5071, TBJ series equivalent

A warning light does one job: make a condition visible across a distance, even when the hooter cannot be heard. On a noisy factory floor, in a warehouse aisle, at a crane landing zone — a revolving or flashing LED beacon gives workers an unambiguous visual alert without requiring them to read a display or hear a tone.

Which model for your application?

Model (RLB series)	Market equivalent	Buzzer	Size	Best for
RLB-1101	LTE-1101, LT-5101	No	Φ100mm	Machine alarm, crane area visual warning
RLB-1101J	LTE-1101J, LT-5101J	Yes (90 dB)	Φ100mm	Combined audio-visual alert, moderate noise areas
RLB-5071	LTD-5071	No	Φ70mm	Compact machine mounting, space-limited installations
RLB-5071J	LTD-5071J	Yes (90 dB)	Φ70mm	Compact combined AV, equipment panels
RLB-5088	LT-5088	No	Φ100mm	Temporary or vehicle mounting (magnetic base)
RLB-5088J	LT-5088J	Yes (90 dB)	Φ100mm	Vehicle-mounted combined alert

↕ Scroll down to see full specification table on desktop

FRBS modes explained

Field-selectable operating modes

F — Flashing

Single on/off flash. High-visibility, lower current draw than revolving. Typically used for fault conditions.

R — Revolving

Continuous rotation — the classic beacon effect. High visibility from all angles, 360°. Standard for machine start/stop indication.

B — Blinking

Rapid on/off blink (faster than flashing). Used for urgent alerts requiring maximum attention.

S — Steady

Continuous on, no flash. Used for status indication — power on, process running, access authorised.

Buyers ask us

Is this a direct replacement for LTE-1101 / TBJ-01?

Yes. Our RLB-1101 series is dimensionally and electrically equivalent to LTE-1101, LTE-1101J, LT-5101, TBJ-01, and TBJ-150. Same mounting base, same voltage range, same FRBS mode selection. Direct replacement with no wiring changes.

What colours are available?

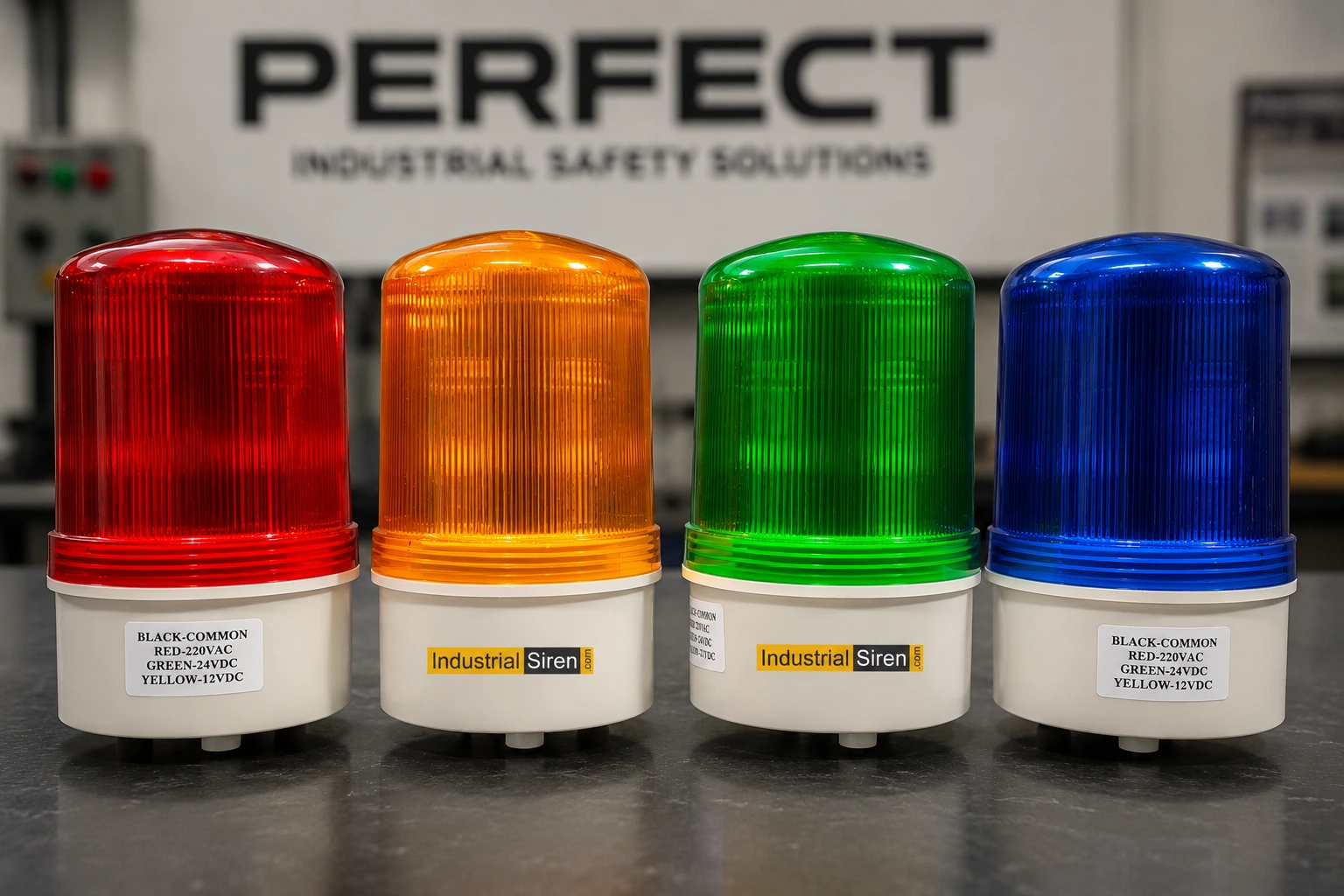

Red, Amber/Yellow, Green, and Blue. Specify at order. The most common combination is Red (fault/alarm) or Amber (caution/warning). Green is used for running/OK status. Blue for operator call in Andon systems.

What voltage does it require?

Available in 12V DC, 24V DC, 110V AC, and 220V AC. Specify at order — the voltage is fixed at manufacture. The most common for PLC-driven applications is 24V DC. For direct mains connection, order 220V AC.

Is it suitable for outdoor use?

IP65 — dust tight and protected against water jets. Suitable for outdoor installation, covered yards, and washdown areas. Not suitable for direct rain exposure without a protective canopy.

Can I order mixed colours for multiple machines?

Yes. Mixed-colour orders can be placed — specify quantity per colour. Minimum order per colour is 1 unit. We can supply labelled and tagged if required.

LED Revolving Warning Light — RLB Series
